TV Above a Fireplace in Santa Ana
TV Mounting Frame Santa Ana covers mounting a TV above a fireplace in Santa Ana homes — brick and tile hearths in the 1920s bungalows, plaster chimney breasts in the revival houses and drywall-covered chimneys in the mid-century ranch houses — checked for heat above the firebox, for the wall behind the TV and for a viewing height that does not strain the neck.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
Brick, tile and plaster chimney walls
| Fireplace wall | Where it shows up | How it is fixed |
|---|---|---|
| Brick | Bungalows and ranch houses | Sleeve anchors in the brick body |
| Tile or ceramic surround | Period revival houses | The surround is left alone; the mount goes on the wall above |
| Plaster over a chimney frame | Revival and Tudor cottages | Long lag bolts into framing |
| Drywall over a chimney frame | Mid-century remodels | Lag bolts into framing |
A probe first shows what is behind the finish, because the right hardware follows the answer.

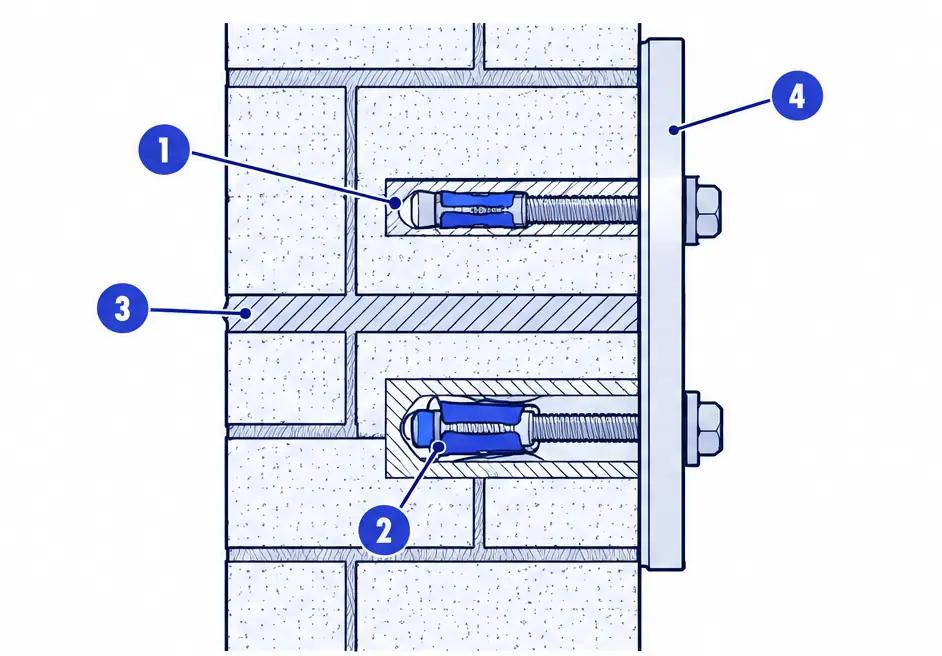

What the numbers show
- Hole in the brick body Each hole is drilled into the middle of a brick and not into a joint.
- Expanding sleeve As the nut is tightened the sleeve expands and grips the brick.
- Mortar joint The weakest part of the wall; no anchor goes here.
- Wall plate The plate sits flat on the brick face, held by the anchors.
Parking the screen above the heat
A wood fire sends heat and soot up the wall and a gas unit throws heat past the top of the opening. The installer checks the firebox type, the mantel depth and the wall temperature after a long fire, and reads the clearance in both manuals.
A pull-down mount parks the screen high and lowers it forward and down to eye level; the swing path must clear the mantel.
What the numbers show
- Bracket in the framing The wall bracket is bolted into the framing above the mantel, not into the finish alone.
- Gas-spring arm A gas-spring cylinder in each arm carries the weight and makes the pull-down smooth.
- Parked TV Parked high, the screen sits above the heat line measured for the fireplace.
- Lowered TV The dashed outline shows the screen brought down to eye level.
- Mantel depth The swing path has to clear the front edge of the mantel.
Cables on a chimney wall that stays closed
Brick and tile cannot be cut for wires. The usual choices are a paintable raceway along a mortar line, a route through the side wall to a cabinet, or an in-wall rated kit where the chimney is framed in drywall.
- Power stays a short run to an existing outlet; no plain cord goes inside the wall.
- A new outlet above a fireplace is an electrician's job.
- Flue and gas-line areas are never drilled.
A fireplace in a house with a past
In older Santa Ana homes the fireplace is often the original feature the room was built around, with a carved mantel, a tile hearth or a painted brick face. The installer asks what the owner wants preserved and lets the mount follow: a pull-down arm that leaves the mantel clear, or a position to one side of the chimney that keeps the face as it is.
TV Above a Fireplace — common questions
How much does a TV above a fireplace cost in Santa Ana?
Roughly $160–$250 for a 32–49 inch TV on a drywall chimney wall in 2026, with a brick or stone surround adding $50–$95.
Can a TV go on a brick fireplace?
Yes, on sleeve anchors set in the body of the brick, after a probe shows what is behind the surface.
